Are you getting the most out of your solar PV system?!
Solar energy system losses directly impact the overall solar panel’s performance, energy efficiency, and power output.
Various factors affect the power production of a solar PV system.
The solar module characteristics as well as solar system design, orientation, and configuration all ensure the output of a solar energy system. Any solar PV issue with these factors becomes the reason for solar energy system losses.
Understanding and mitigating losses is crucial for maximizing energy production and return on investment.

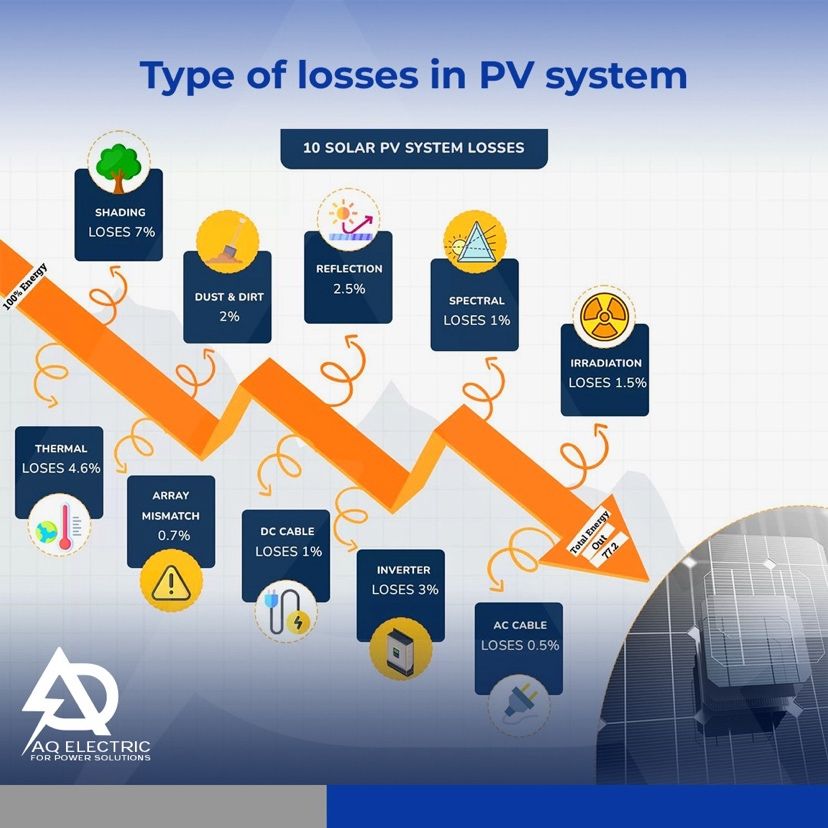

Here’s a mention of common losses in solar PV systems and how to address them:
-Shading Loss: Restricted sunlight decreases panel efficiency, significantly impacting energy yield.
Priority focus on mitigation.
-Dust Loss: Dust accumulation results in up to 2% energy loss, escalating to 6-7% in industrial zones. Regular maintenance crucial for performance.
-Thermal Loss: Solar cell output declines by 0.3%-0.4% per degree above 25°C, emphasizing efficient temperature management.
-Inverter Loss: The efficiency of the most popular type of inverter, the string inverter, is 98 percent. It means that for every 100kWh, 2kWh will lose.
Temperature and load are two of the key variables impacting solar inverter efficiency. If the unit is positioned outdoors or inside, make sure it is well-ventilated and sheltered from the sun’s glare, highlighting the need for high-efficiency models and choose the best way of installing.
-Panel Mismatch Losses: Differences in panel energy production contribute to efficiency loss, requiring careful system design.
-Cable Losses: DC and AC cable inefficiencies, including voltage drop, impact overall system performance. Correct cable selection essential.
-Radiation Loss: Decreased irradiance leads to efficiency reduction, emphasizing the importance of optimal positioning.
Concludingly, the majority of solar PV losses are related to design flaws or component characteristics.
To maximize output, the installation might choose the right cabling and pay particular attention to both nearby and far-off shading.
Also, Installing the most recent DC optimizers or micro-inverters can significantly reduce mismatch loss or other impacts by partial shade.
