In solar PV systems, circuit breaker selection is something that is easily overlooked, and time should be taken to select the correct solution. If the circuit breaker is not appropriate, it will cause frequent tripping of the equipment, overheating damage and even system fire.

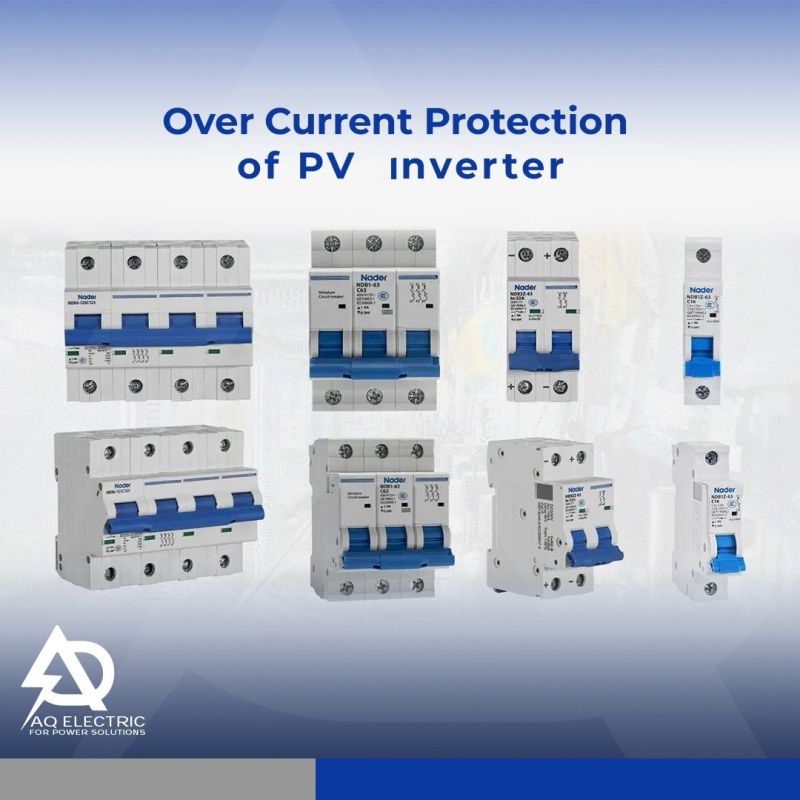

Types of Circuit Breaker
In a solar PV system, the choice of a series of circuit breakers depends on several factors:
● Electrical characteristics of the system
● Environment
● Loads and the requirements of the installation type
1. Ambient Temperature at the Circuit Breaker
For PV systems, equipment is usually installed outdoors, a higher outdoor temperature is usually presumed than for installations in buildings, so it can be expected that the temperature in the distribution board will be higher. This will also affect the flow rate and operating temperature of the circuit breaker.
For the selection of circuit breakers in solar PV systems, temperature is the most important consideration.
2. Mutual Heating of Circuit Breakers
For large solar PV power stations with multiple inverters, there are usually multiple circuit breakers in the distribution board, which are closely mounted next to each other. These circuit breakers will provide their maximum current at the same time therefore, the temperature of the circuit breakers will affect each other more quickly, possibly leading to premature tripping.
3. Type of Connected Devices
If a solar PV system is connected to the grid, it will be tripped by the current and voltage impact of the load feeder network. When we choose a circuit breaker, we need to consider the components of the load in this grid in order to choose the most suitable circuit breaker.
To ensure the proper implementation of overcurrent protection, consider the following: proper sizing, regular maintenance, and adherence to standards.
Overcurrent protection is a crucial aspect of maintaining the safety and efficiency of PV inverters.
By implementing proper overcurrent protection measures, you can safeguard your investment, ensure compliance with international standards, and promote the long-term reliability of your PV system.
