Several solar cells, modules, and arrays are interconnected in both series and parallel configurations to achieve a high power output. In such setups, it is essential for all devices to share identical electrical parameters. However, variations inevitably arise, and these differences can be notable.
The sources of these discrepancies include:
Mismatch from orientation, manufacturing differences, aging, string configuration, or soiling (dust)

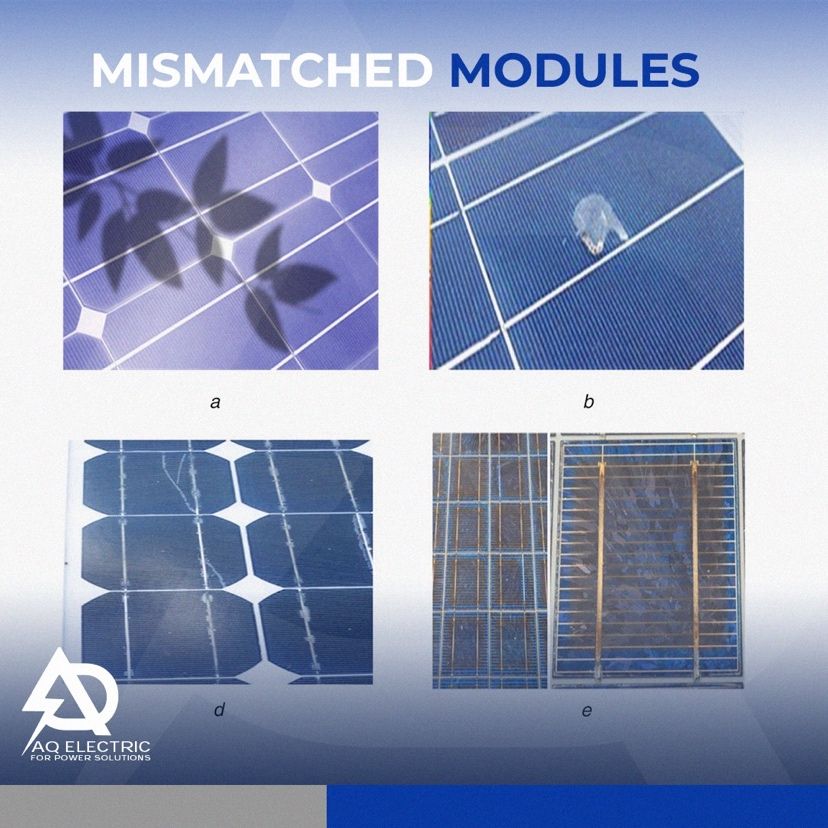

Mismatched Modules:
– Mismatch loss occurs when different module technologies are employed on the same string.
– Variations in cell processing during manufacturing contribute to differences.
– Inconsistencies arise when using cells or modules with the same rating but from different manufacturers.
– Differences occur when using cells or modules with different ratings but from the same manufacturer.
– Environmental conditions, such as partial shading of cells or modules, can lead to discrepancies.
– Instances like breaking of the glass cover further contribute to variations.
Mismatch faults in photovoltaic (PV) modules manifest when the electrical parameters of one or a group of cells deviate significantly from the others.
This can be a result of the interconnection of solar cells or modules experiencing distinct environmental conditions, such as variations in irradiance or temperature. The consequences of mismatch faults are severe, causing irreversible damage to PV modules and resulting in substantial power loss, Detecting these faults proves challenging with conventional protection devices, as they typically do not generate large fault currents.
This emphasizes the need for advanced monitoring and detection methods to promptly identify and address mismatch faults, ensuring the longevity and efficiency of PV systems.
