A clamp meter is used to measure electrical current without direct contact with the conductor. This makes it an ideal tool for safely assessing the system’s performance. Using the phenomenon of magnetic induction, By measuring the DC output from the solar panels and the AC output from the inverters, the clamp meter helps to verify the expected performance of each part. Any deviation in current or voltage can highlight issues such as panel damage, inverter malfunction, or shading.
Clamp meters are vital to this process; they allow for accurate electrical measurements without interrupting the live circuits. Following are some reasons why clamp meter are used for Accurate Solar PV System Diagnostics:
* Safe current measurements
* Evaluating Inverter performance
* Monitoring Solar Panel Output
* Identifying Voltage Drops and Connection issues
How to Use a Clamp Meter for Solar PV Systems
* Selecting appropriate mode
Choose the AC or DC mode on the clamp meter based on the part of the system you are testing.
* Measuring Current from Solar Panels
If you want to check the current directly from the solar panel, open the clamp and place it around the DC conductor carrying the panel output.

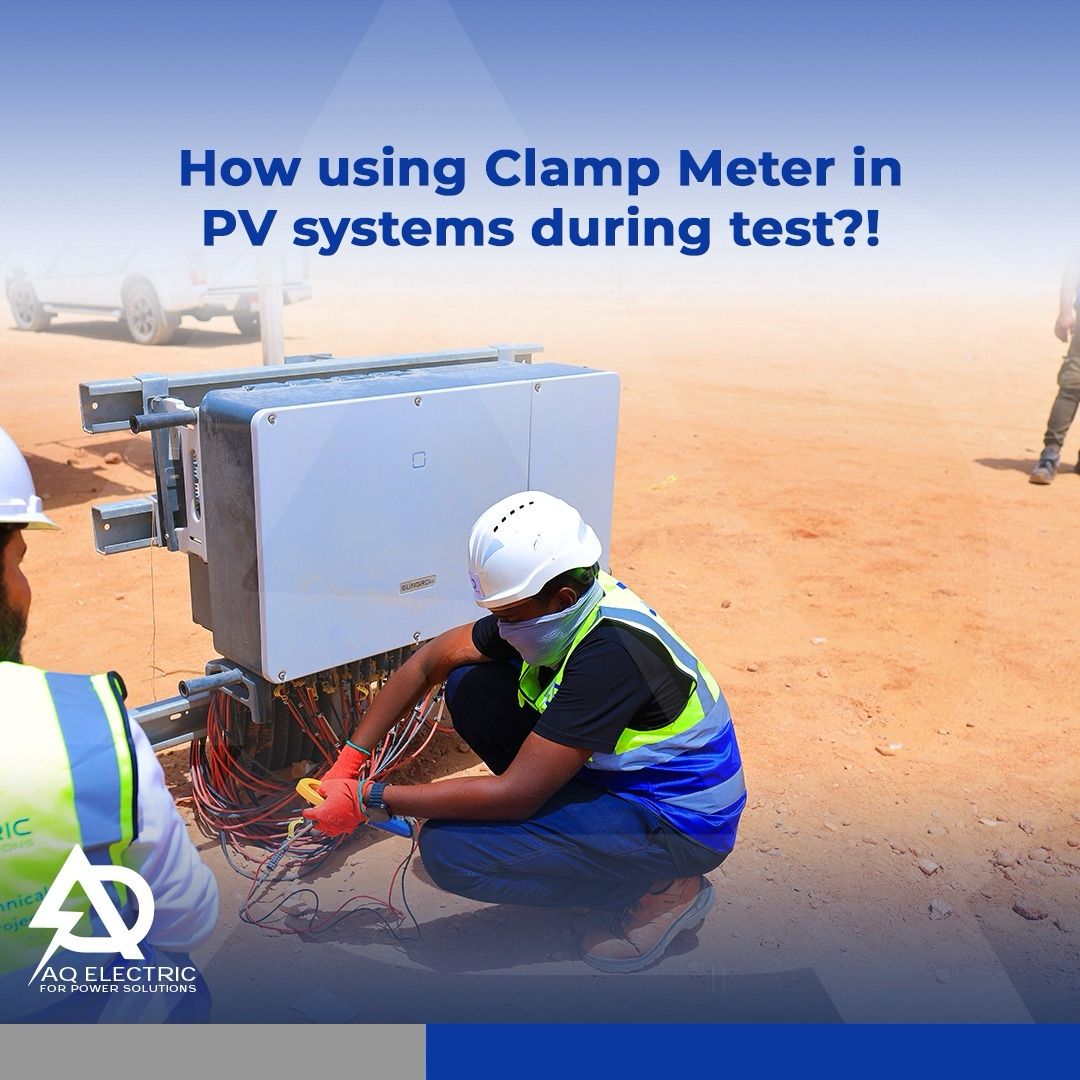

* Checking the Inverter’s AC output
To test the AC output, clamp the meter around the output connection from the inverter. This helps to identify any potential issues by comparing them with the expected levels.
* Measuring Voltage
Use the meter probes to measure voltage across various points in the system. These points can be between the panels and the inverter. Voltage check helps to detect any significant drops which may indicate weak or faulty connections.
* Assessing the Grounding
Use a clamp meter to check the grounding resistance. It must be made sure that the grounding connections are working as they should to prevent any electrical faults.
Best Practices for Accurate Solar PV Diagnostics
– Choosing the right time for diagnostics
– Selecting the Correct Meter Settings
– Follow a logical Testing Order
– Verify Grounding
– Regular Calibration
Accurate diagnostics are essential for ensuring the performance and efficiency of solar PV systems, and a reliable clamp meter is an indispensable tool for solar technicians. Selecting the right clamp meter with the necessary features enables precise data collection, aiding in effective troubleshooting and system optimization.
