In the intricate web of a solar power conversion system, solar panels are the heroes that convert sunlight into electrical energy. However, the journey doesn’t end there. Power converters step in to refine and process this harvested energy, functioning in an environment where both high-voltage and low-voltage circuits coexist harmoniously.
Here’s where isolation protection takes the stage. The term “isolation” it’s all about ensuring safety and functionality. Isolation, in this context, refers to the deliberate separation of electrical energy sources to prevent hazards and guarantee system integrity.
Imagine it as a safety net, ready to cut off the supply from a specific section of the installation when necessary. This feature ensures that both functional requirements and safety regulations are met with diligence.
Isolation needs to be provided in both the positive and negative cables, with a key emphasis on accessibility. After all, being able to reach these measures quickly can make all the difference in critical situations.
Different levels of isolation exist within a PV system:
String Isolation: Achieved through strategically positioned plug and socket connectors or removable string fuses. These components play a crucial role in ensuring that the system can be segmented for maintenance and troubleshooting purposes.
Sub Array Isolation: This level of isolation involves removable sub-array fuses or the use of a switch disconnector. By incorporating these measures, individual sections of the system can be isolated while the rest continue to function seamlessly.

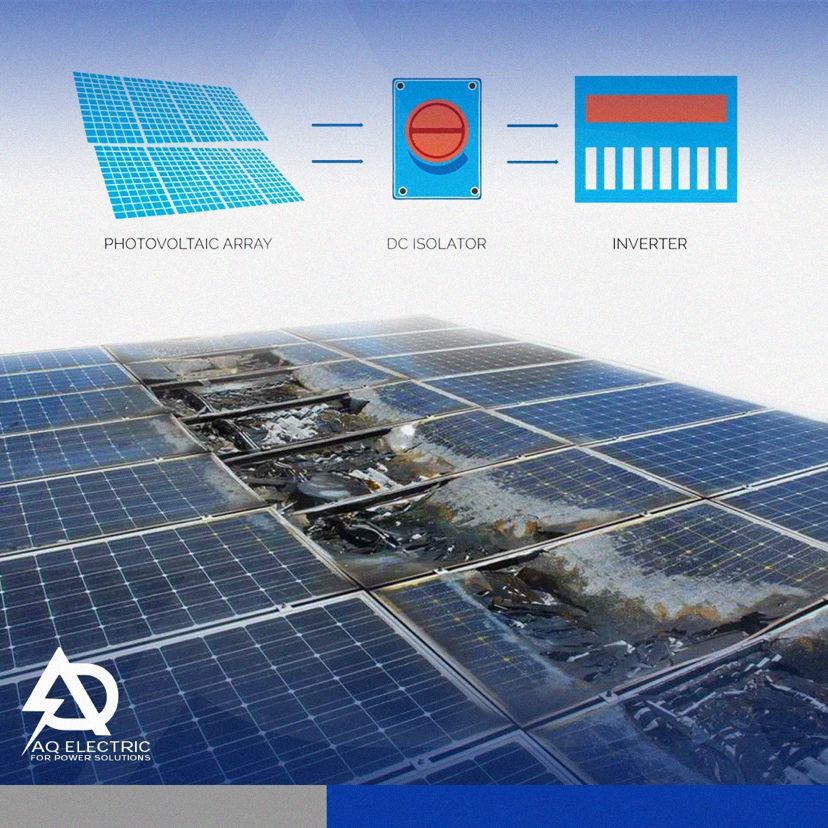

Array Isolation: The Array Switch Disconnector takes the stage here, providing a pivotal role in isolating the entire array when needed. This measure ensures that the entire system can be effectively disconnected from the energy source for comprehensive maintenance.
In the dynamic landscape of renewable energy, safety and performance go hand in hand. The careful Concur of isolation protection in PV systems exemplifies our commitment to harnessing the power of the sun responsibly. So next time you admire the panels silently at work, remember the intricate dance of isolation happening beneath the surface to keep us shining bright.
