When installing grid-connected photovoltaic inverters, ensuring proper clearance around the units is crucial for safety, performance, and maintenance.
Always prioritize the inverter manufacturer’s specific installation guidelines. These recommendations are tailored to the design, heat dissipation requirements, and operational features of the unit. Deviating from these instructions can void warranties and compromise system performance.
Here are some key points to keep in mind:
1. Adequate Ventilation
Inverters generate heat during operation, and proper airflow is essential to prevent overheating.
Always check the manufacturer’s guidelines for specific recommendations.
2. Wall Mounting Distance
For wall-mounted inverters, maintain at least adequate space between the back of the inverter and the wall to allow for efficient heat dissipation.

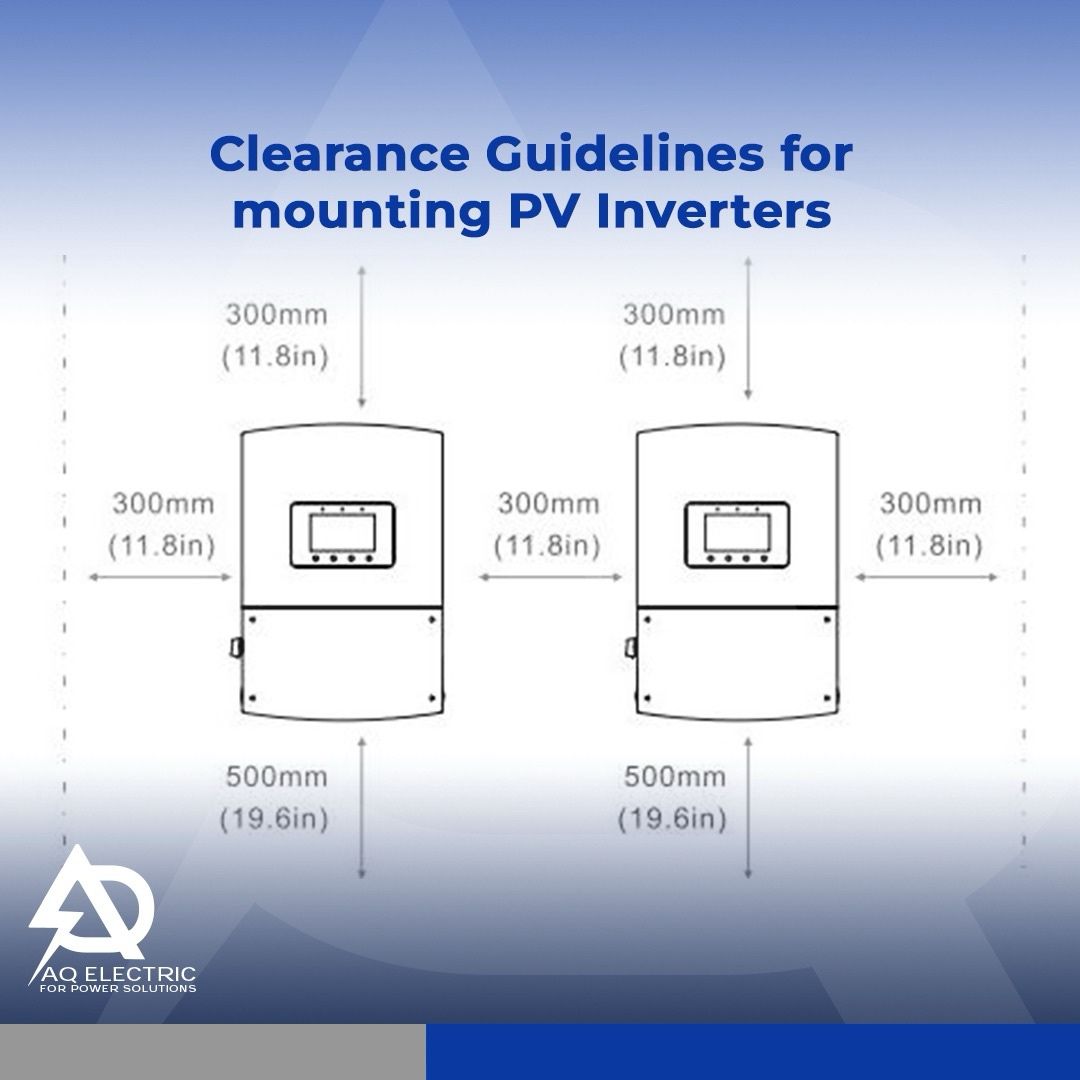

3. Side-to-Side Clearance
Leave a minimum adequate space on either side of the inverter to allow for proper ventilation and easy access during maintenance.
4. Top and Bottom Clearance
* Top Clearance: Leave space above the inverter to prevent hot air from being trapped.
* Bottom Clearance: Ensure to leave enough space below the inverter for cable management and servicing access.
5. Multiple Inverters Installation
When installing multiple inverters side-by-side or vertically stacked, increase the clearance to ensure no heat buildup between units.
6. Accessibility for Maintenance
Position the inverter at a height and location that allows easy access for inspection, cleaning, and repairs.
7. Environmental Considerations
For outdoor installations, make sure the inverter is mounted in a shaded area, away from direct sunlight or heavy rain exposure, and ensure adequate airflow even in enclosed spaces like cabinets.
Why Proper Clearance Matters
1- Heat Management: Prevents overheating and ensures optimal performance.
2- Safety: Reduces the risk of fire hazards caused by inadequate airflow.
3- Maintenance: Simplifies routine checks, servicing, and troubleshooting.
Proper planning ensures both the safety and longevity of your solar PV system. by consider enough space when mounting PV inverters meet both regulatory and manufacturer-specific requirements.
